Somme Mod. 312
Reference
MEL-CF-088
Technical information
- Tool: RR-125 (1/4 club) (RR 60 x 104 mm)
- Inside diagonal range: 55-170 mm
- Height range: 15–130 mm
- Max. output: 25 cans/min
Machinery in: ‘Seamers (Automatics Irregular Cans)’
Seamers (Automatics Irregular Cans)
Seamers (Automatics Irregular Cans)
Blema-Aue Mod. KEAVU-160
Reference
MEL-CF-085
Technical information
- Tool: RR asparagus (81 x 156 mm)
- 5 stations
- Min. can size: 40 x 40 mm
- Max. can size: 160 x 160 mm
- Height range: 16 – 160 mm
- Max. output: 150 cans/min
Seamers (Automatics Irregular Cans)
Somme Mod. ASIA-44
Reference
MEL-CF-083
Technical information
- Tool: 235 x 235 mm (18 liters)
- Max. inside diagonal: 375 mm
- Height range: 30 – 350 mm
- Max. output: 25 cans/min
Seamers (Automatics Irregular Cans)
Ruibus Mod. MACU-180
Reference
MEL-CF-076
Technical information
- Tool: RR 164 X 125 x 350 (h)mm. y la otra: RR 159 X 119 x 350 (h) mm
- Min. inside diagonal: 40 mm
- Max. inside diagonal: 190 mm
- Height range: 30 – 400 mm
- Max. output: 45 cans/min
- Including cans turner
- Machines in fully rebuilt (as new) condition
Seamers (Automatics Irregular Cans)
Ruibus Mod. MACU-180
Reference
MEL-CF-075
Technical information
- Tool: RR 164 X 125 x 350 (h)mm. y la otra: RR 159 X 119 x 350 (h) mm
- Min. inside diagonal: 40 mm
- Max. inside diagonal: 190 mm
- Height range: 30 – 400 mm
- Max. output: 45 cans/min
- Including cans turner
- Machines in fully rebuilt (as new) condition
Seamers (Automatics Irregular Cans)
Somme Mod. 444
Reference
MEL-CF-074
Technical Information
- Tool: 1 libra oval
- Min. inside diagonal: 70 mm
- Max. inside diagonal: 160 mm
- Heigth range: 20 – 275 mm
- Max. output: 60 cans / min
Seamers (Automatics Irregular Cans)
Lubeca Mod. LW-303
Reference
MEL-CF-073
Technical Information
- Tool: RR 118 x 147 x 315 (h) mm (Olive oil)
- 2 stations
- Min. inside diagonal: 55 mm
- Max. inside diagonal: 210 mm
- Height range: 100 – 315 mm
- Max. output: 30 cans / min
Seamers (Automatics Irregular Cans)
Lubeca Mod. LW-303
Reference
MEL-CF-072
Technical Information
- Tool: RR 118 x 147 x 315 (h) mm (Olive oil)
- 2 stations
- Min. inside diagonal: 55 mm
- Max. inside diagonal: 210 mm
- Height range: 100 – 315 mm
- Max. output: 30 cans / min
Seamers (Automatics Irregular Cans)
Vulcano Mod. 2 heads
Reference
MEL-CF-063
Technical Information
- Tool: 1/4 dingley (105×75)
- 2 stations
- Min. inside diagonal: 55 mm
- Max. inside diagonal: 210 mm
- Height range: 15 – 55 mm
- Max. output: 50 cans/min
Seamers (Automatics Irregular Cans)

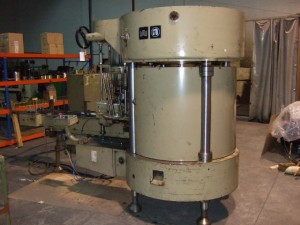

Blema-Aue Mod. KEAVU-160
Reference
MEL-CF-054
Technical Information
- Tool: RR asparagus (81 x 156 mm)
- 5 stations
- Min. can size: 40 x 40 mm
- Max. can size: 160 x 160 mm
- Height range: 16 – 160 mm
- Max. output: 150 cans/min
Seamers (Automatics Irregular Cans)
Lubeca Mod. LW-303
Reference
MEL-CF-048
Technical Information
- Tool: RR 47 x 93 x 91 (h) mm. Diagonal: 94 mm
- 2 stations
- Min. inside diagonal: 55 mm
- Max. inside diagonal: 210 mm
- Height range: 30 – 120 mm
- Max. output: 50 cans/min
Seamers (Automatics Irregular Cans)
Lubeca Mod. LW-303
Reference
MEL-CF-047
Technical Information
- Tool: Ø 153 mm
- 2 stations
- Min. inside diagonal: 55 mm
- Max. inside diagonal: 210 mm
- Height range: 30 – 150 mm
- Max. output: 60 cans/min
Seamers (Automatics Irregular Cans)
Lubeca Mod. LW-303
Reference
MEL-CF-025
Technical Information
- Tool: 1/4 club (RR-125)
- 2 stations
- Min. inside diagonal: 55 mm
- Max. inside diagonal: 210 mm
- Height range: 15 – 130 mm
- Max. output: 50 cans/min
Seamers (Automatics Irregular Cans)
Lubeca Mod. LW-303
Reference
MEL-CF-024
Technical Information
- Tool: 1/4 club (RR-125)
- 2 stations
- Min. inside diagonal: 55 mm
- Max. inside diagonal: 210 mm
- Height range: 15 – 130 mm
- Max. output: 50 cans/min
Seamers (Automatics Irregular Cans)
Cevolani Mod. AQ-33
Reference
MEL-CF-012
Technical Information
- Tool: RR 68 x 94 mm
- 4 stations
- Min. inside diagonal: 70 mm
- Max. inside diagonal: 120 mm
- Height range: 70 – 300 mm
- Max. output: 150 cans/min
Seamers (Automatics Irregular Cans)

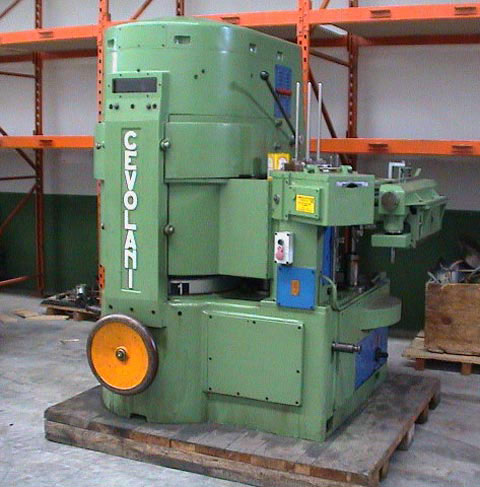

Cevolani Mod. AQ-33
Reference
MEL-CF-011
Technical Information
- Tool: RR 68 x 94 mm
- 4 stations
- Min. inside diagonal: 70 mm
- Max. inside diagonal: 120 mm
- Height range: 70 – 300 mm
- Max. output: 150 cans/min
Seamers (Automatics Irregular Cans)

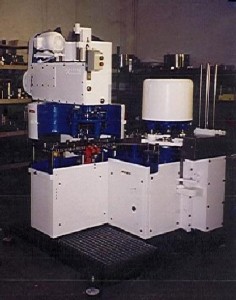

Somme Mod. 434
Reference
MEL-CF-010
Technical Information
- Tool: RR 125 (1/4 club)
- 1 stations
- Max. inside diagonal: 125 mm
- Height range: 15 – 265 mm
- Max. output: 100 cans/min
