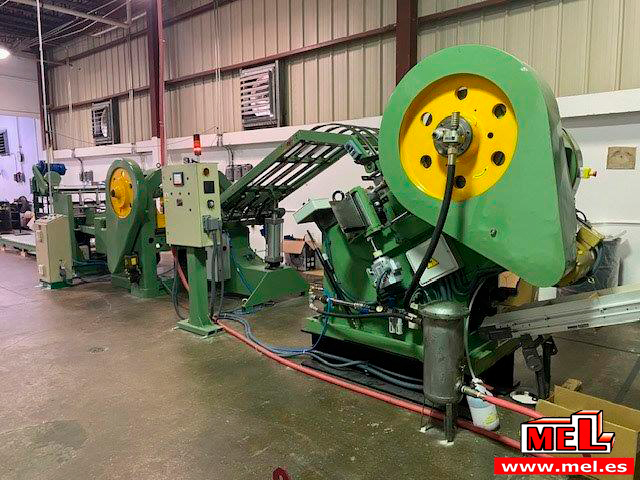

Lomas Mod. PA-60
Reference
MEL-LT-044
Technical Information
- Tool: Ø 189 mm
- Output max: 100 ends/min
- Composed by:
- Automatic sheet feeder
- Slitter FMI mod. 12112
- Strips magnetic conveyor MEL
- Automatic press Lomas mod. PA-60 (60 tons)
- Vulcano curler
Machinery in: ‘Complete Endmaking Lines’
Complete Endmaking Lines
Complete Endmaking Lines

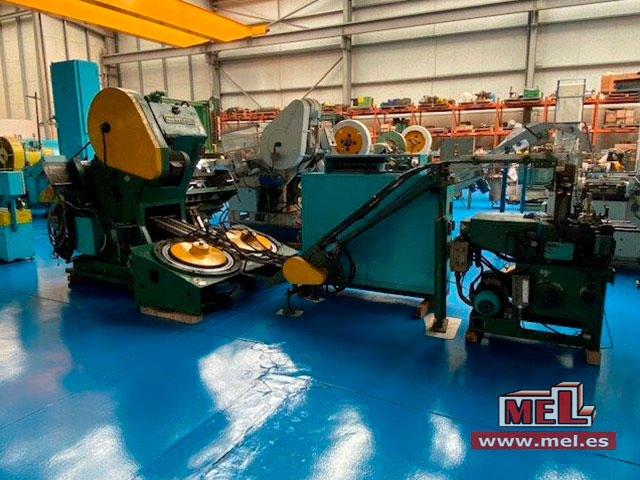

Fmi-Mecfond Mod. A-702
Reference
MEL-LT-043
Technical Information
- Tool: Ø 99 mm double
- Output max: 600 ends/min
- Consisting of:
- Automatic press Fmi-Mecfond mod. A-702 (45 Tn), with double die
- Double curler Fmi-Mecfond mod. A-758
- Double Magnetic conveyor from curler to liner,
- Double liner Fmi-Mecfond mod. A-833 with electronic compound injector Grace mod. MK-III
- Ends stacker with magnetic rolls
Complete Endmaking Lines

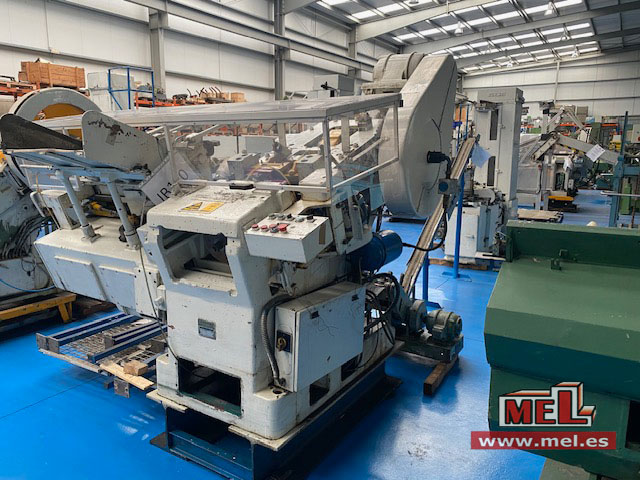

Karges-Hammer Mod. ASts-230
Reference
MEL-LT-042
Technical information
- Tool: Asparragus (RR 81 x 156) mm.
- Output: 180 ends/min
- Consisting of:
- Automatic press Karges-Hammer mod. ASts-230 (40 Tn).
- Single die.
- Disc curler Karges-Hammer mod. ARU-160.
- Magnétic conveyor.
- Liner Vulcano mod. BAQ-20.
- Vertical gas oven Vulcano mod. FSU-20.
Complete Endmaking Lines

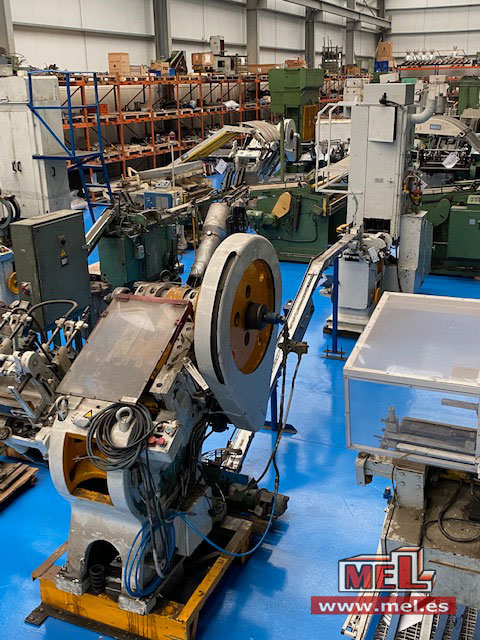

Fmi-Mecfond Mod. A-705
Reference
MEL-LT-041
Technical information
- Tool: Olive Oil (RR 108 x 162) mm
- Output: 110 ends/min
- Consisting of:
- Automatic press Fmi-Mecfond mod. A-705 (30 Tn)
- Single die
- Disc curler Vulcano
- Magnétic conveyor
- Liner IMC mod. 182
- Vertical gas oven Cerlei
Complete Endmaking Lines

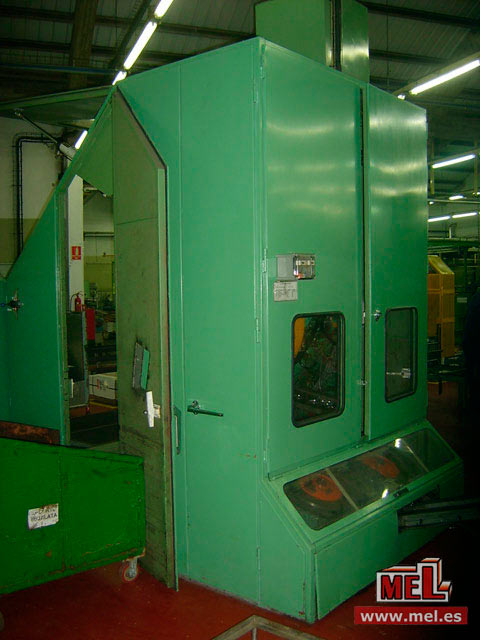

Karges-Hammer Mod. ASts-200
Reference
MEL-LT-037
Technical Information
- Tool: Ø 73 mm double
- Output: 500 ends/min
- Consisting of:
- Sound proof cabin
- Automatic press Karges-Hammer mod. ASts-200 (30 Tn), with double die
- Double die for Ø 73 mm
- Double curler Karges-Hammer mod. DAR115/2
- Magnetic conveyors
- Double Ends stacker with magnetic rolls
Complete Endmaking Lines

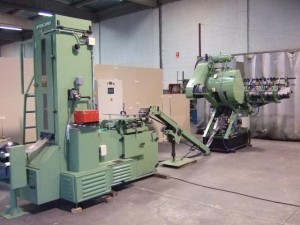

Vulcano Mod. PA-35 RR-125 (1/4 club)
Reference
MEL-LT-036
Technical Information
- Tool: RR-125 (1/4 club)
- Output: 150 ends/min
- Consisting of:
- Automatic press Vulcano mod. PA-35 (35 Tn), with single die
- Rectangular Curler Vulcano of 4 discs
- Magnetic conveyor
- Die liner Vulcano mod. BAQ-20
- Vertical gas oven Vulcano mod. FSU-20
- Ends stacker with magnetic roll
Complete Endmaking Lines

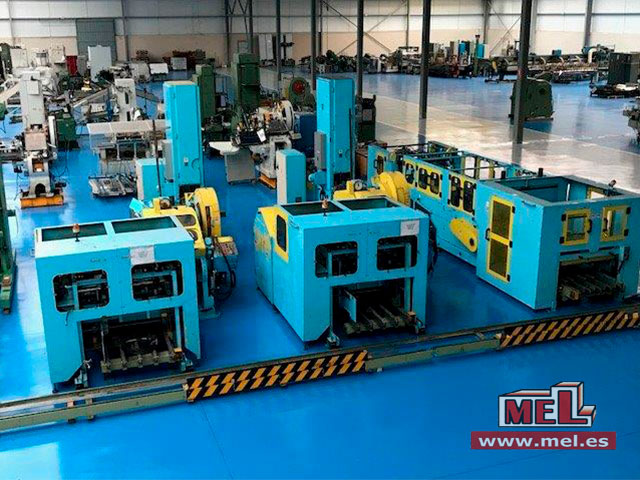

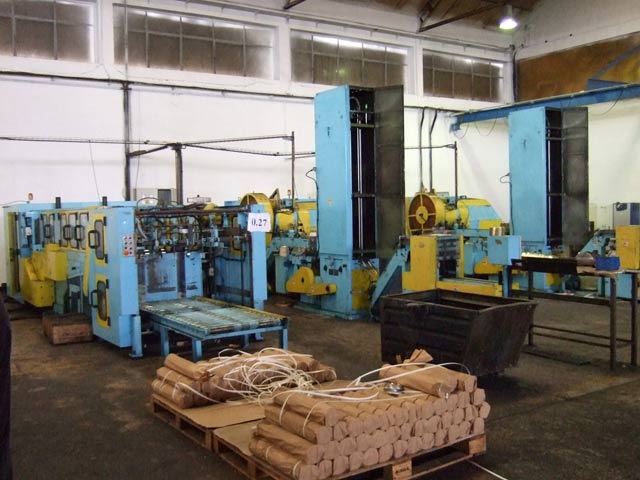

Shin-I Mod. S-B9B
Reference
MEL-LT-031
Technical Information
- Tool: Ø 153 mm
- Output: 220 ends/min
- Consisting of:
- 2 Automatic press Shin-I mod. S-B9B (40 Tn) Pneumatic clutch
- 2 Single curlers Shin-I
- 2 Magnetic conveyors
- 2 Liners Shin-I mod. SB10AL with electronic compound injector
- 2 Vertical electric ovens Shin-I
- 2 Ends stacker
Complete Endmaking Lines
Cevolani Mod. PD-20
Reference
MEL-LT-024
Technical Information
- Tool: Ø 99 mm double
- Output: 400 ends/min
- Consisting of:
- Scroll shear FMI with sheet feeder and stacker
- Automatic press Cevolani mod. PD-20 (40 Tn), with double die
- Double curler FMI
- Magnetic conveyor
- Liner Cevolani MT-65 with electronic compound injector Grace mod. MK-III
- Vertical gas oven Cevolani
- Ends stacker with magnetic rolls
Complete Endmaking Lines
Cevolani Mod. PD-20
Reference
MEL-LT-023
Technical Information
- Tool: Ø 83.7 mm double
- Output: 400 ends/min
- Consisting of:
- Scroll shear FMI with sheet feeder and stacker
- Automatic press Cevolani mod. PD-20 (40 Tn), with double die
- Double curler FMI
- Magnetic conveyor
- Liner Cevolani MT-65 with electronic compound injector Grace mod. MK-III
- Vertical gas oven Cevolani
- Ends stacker with magnetic rolls
Complete Endmaking Lines

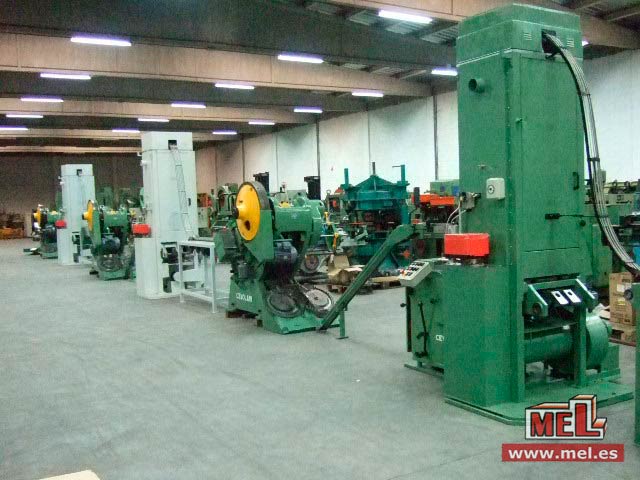

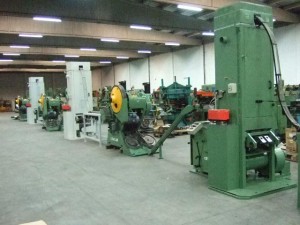

Cevolani Mod. PD-20
Reference
MEL-LT-022
Technical Information
- Tool: Ø 73 mm double
- Output: 400 ends/min
- Consisting of:
- Scroll shear FMI with sheet feeder
- Automatic press Cevolani mod. PD-20 (40 Tn), with double die
- Double curler FMI
- Magnetic conveyor
- Liner Cevolani MT-65 with electronic compound injector Grace mod. MK-III
- Vertical gas oven Cevolani
- Ends stacker with magnetic rolls
Complete Endmaking Lines

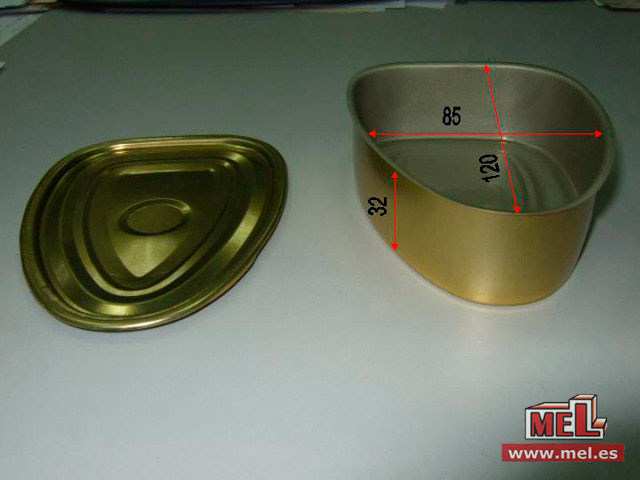

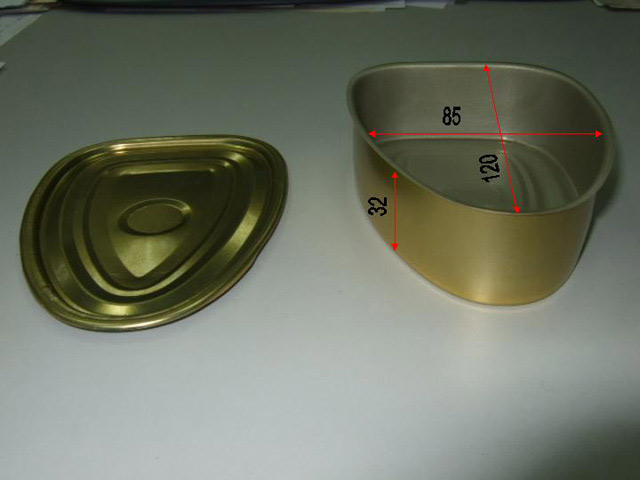

Masso Mod. Ham 220Grs
Reference
MEL-LT-019
Technical Information
- Tool: Ham 220 gr
- Output: 120 ends/min
- Consisting of:
- Automatic press Masso mod. 202 (30 Tn), with single die
- Curler
- Magnetic conveyor
- Die liner Amorosa
- Vertical gas oven Carnaud
Complete Endmaking Lines

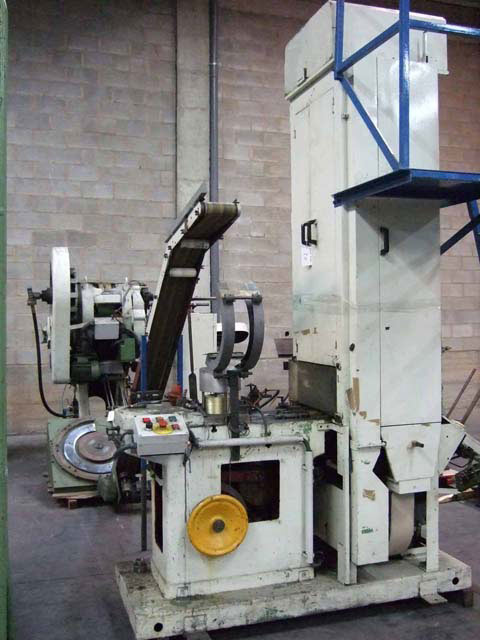

Fmi-Mecfond Mod. A-705
Reference
MEL-LT-018
Technical Information
- Tool: Ø 153 mm
- Output: 110 ends/min
- Consisting of:
- Automatic press Fmi-Mecfond mod. A-705 (30 Tn) Pneumatic clutch
- Single die (carbide)
- Single curler Fmi 1241
- Magnetic conveyor
- Liner LOMAS mod. ELA with electronic compound injector Grace mod. MK-III
- Vertical gas oven
Complete Endmaking Lines

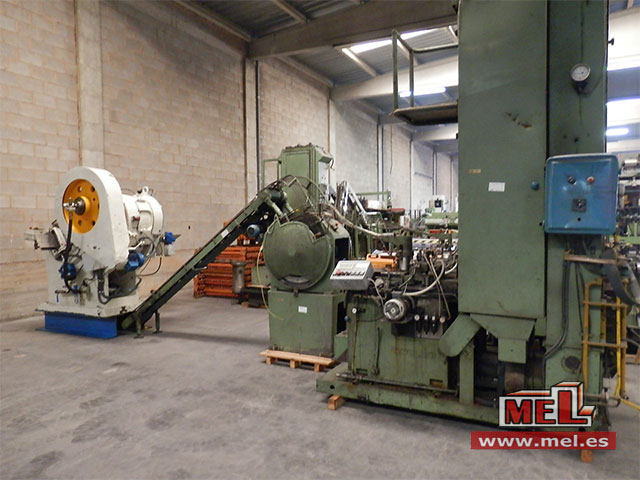

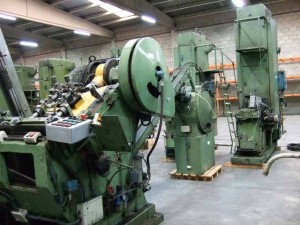

Lomas Mod. PA-60
Reference
MEL-LT-017
Technical information
- Tool: Ø 99 mm double
- Output: 500 ends/min
- Consisting of:
- Lomas press mod. PA-60 (60 Tons)
- VARAS double die (CARBIDE)
- Magnetic conveyors
- Double vertical curler Fmi-Mecfond mod. A-725
- (2) Liners Cevolani mod. MT-65 with electronic compound injector Grace mod. MK-IV
- (2) Vertical gas oven Cevolani
- (2) Ends stacker with magnetic rolls
Complete Endmaking Lines

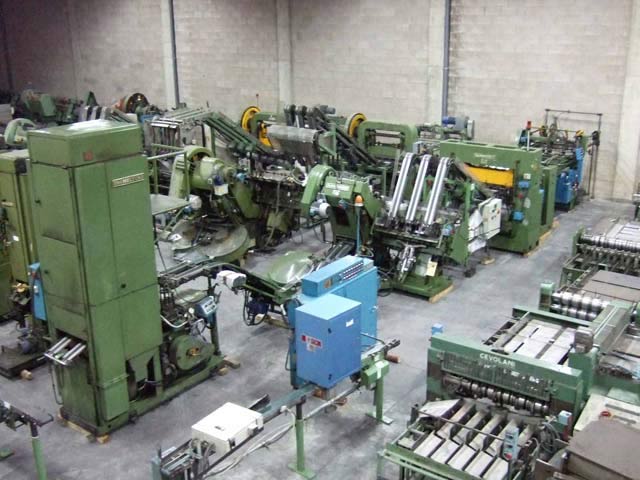

Fmi-Mecfond Mod. A-701
Reference
MEL-LT-016
Technical Information
- Tool: Ø 62 and Ø 65 mm double
- Output: 600 ends/min
- Consisting of:
- Scroll shear Fmi-Mecfond mod. A-181 with sheet feeder
- Feeder scroll strip
- Automatic press Fmi-Mecfond mod. A-701 (30 Tn), with double die
- Double curler Fmi-Mecfond mod. A-754
- Magnetic conveyors
- Double liner Fmi-Mecfond mod. A-833 with electronic compound injector Grace mod. MK-IV
- Double vertical gas oven Fmi-Mecfond mod. A-856
- Artificial vision system SACMI for ends control
- Ends stacker with magnetic rolls
Complete Endmaking Lines

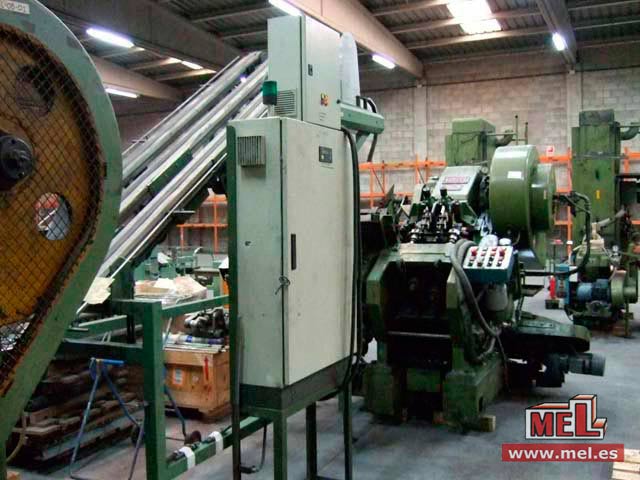

Bliss Mod. 1831
Reference
MEL-LT-015
Technical Information
- Tool: Ø 70 and Ø 73 mm double
- Output: 600 ends/min
- Consisting of:
- Scroll shear Fmi mod. 12111 with sheet feeder
- Feeder scroll strip
- Automatic press Bliss mod. 1831 (40 Tn), with double die
- Double die for diameter 73 and 70 mm
- Double curler Bliss mod. 20C
- Magnetic conveyors
- Two liners IMC mod. A-485 with electronic compound injector Grace mod. MK-III
- Two vertical gas ovens IMC mod. 799
- Ends stackers with magnetic rolls
Complete Endmaking Lines
Fmi Mod. 1221
Reference
MEL-LT-014
Technical Information
- Tool: Ø 153 mm
- Output: 110 ends/min
- Automatic press FMI mod. A-705, 30 Tons, with neumatic clutch
- Single die Ø 153 for press
- Curler FMI mod.1241
- Magnetic conveyor of curler to liner
- Liner FMI mod. 1262, with electronic compound injector Grace mod. MK-III
- Vertical gas oven FMI
- Ends stacker with magnetic rolls
- Electrical panel of maneuver and control of the line
Complete Endmaking Lines
Fmi Mod. 1221
Reference
MEL-LT-013
Technical Information
- Tool: Ø 153 mm
- Output: 110 ends/min
- Automatic press FMI mod. A-705, 30 Tons, with neumatic clutch
- Single die Ø 153 for press
- Curler FMI mod.1241
- Magnetic conveyor of curler to liner
- Liner FMI mod. 1262, with electronic compound injector Grace mod. MK-III
- Vertical gas oven FMI
- Ends stacker with magnetic rolls
- Electrical panel of maneuver and control of the line
Complete Endmaking Lines
Fmi-Mecfond Mod. 1222
Reference
MEL-LT-012
Technical Information
- Tool: Ø 99.5 and Ø 96 mm double
- Output: 450 ends/min
- Consisting of:
- Scroll shear Fmi mod. 12111 with sheet feeder
- Feeder scroll strips
- Automatic press Fmi mod. 1222 (45 Tn), with double die
- Double curler Krupp
- Magnetic conveyors
- Double liner Fmi-Mecfond mod. A-803 with electronic compound injector Grace mod. MK-IV
- Double Vertical gas oven Meritermica mod. 4BF/2
- Double Ends stacker with magnetic rolls
Complete Endmaking Lines
Cevolani Mod. PDV-94
Reference
MEL-LT-011
Technical Information
- Tool: Ø 73 mm double
- Output: 600 ends/min
Complete Endmaking Lines
Tmp Mod. PA-45
Reference
MEL-LT-010
Technical Information
- Tool: Ø 99 mm double
- Output: 550 ends/min
- Automatic press TMP mod. PA-45 (45 Tn), with double die
- Double curler Income
- (2) Magnetic conveyors
- (2) Liners Cevolani mod. MT-65 with electronic compound injector Grace mod. MK-IV
- (2) Vertical gas ovens Cevolani
- (2) Ends stacker with magnetic rolls
Complete Endmaking Lines

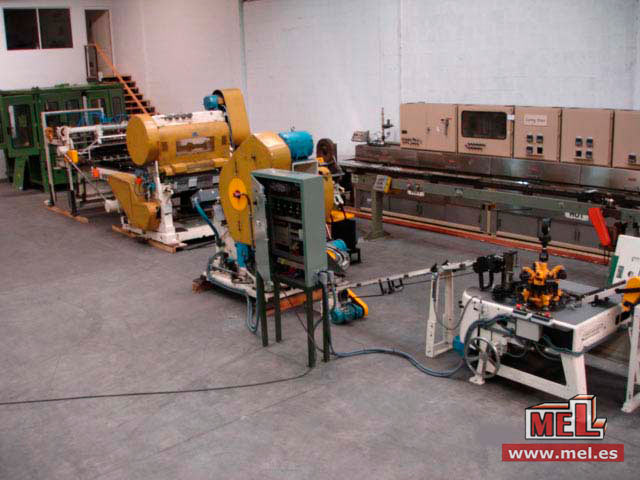

Metalbox Mod. 314
Reference
MEL-LT-008
Technical Information
- Tool: Ø 73 mm double
- Output: 600 ends/min
Complete Endmaking Lines
Complete Endmaking Lines

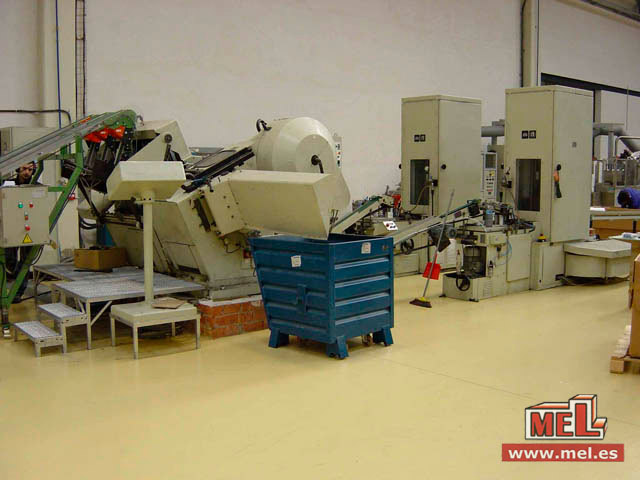

Blema-Aue Mod. PKXD-40
Reference
MEL-LT-002
Technical Information
- Tool: Ø 99 mm double
- Output: 450 ends/min
